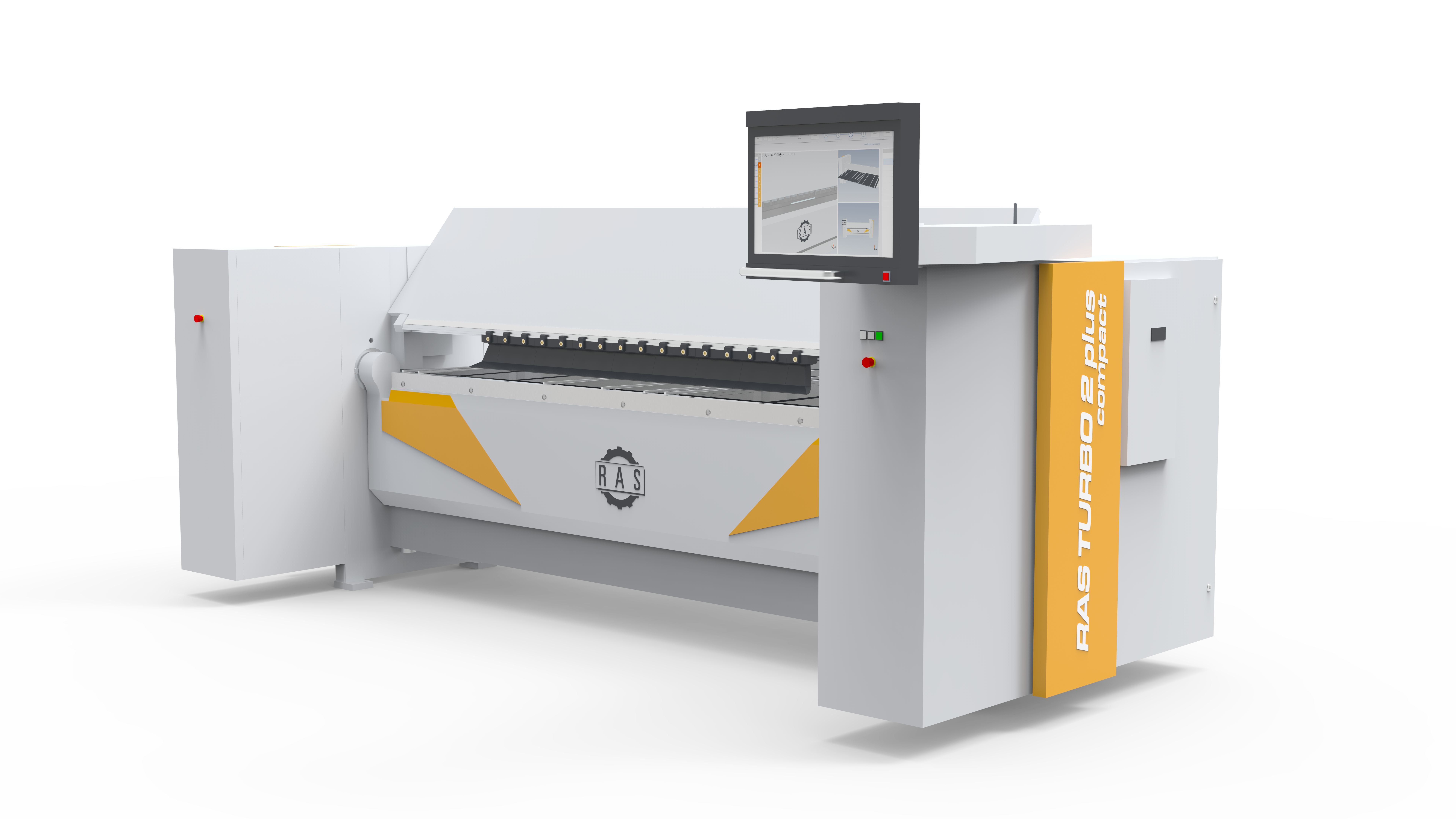

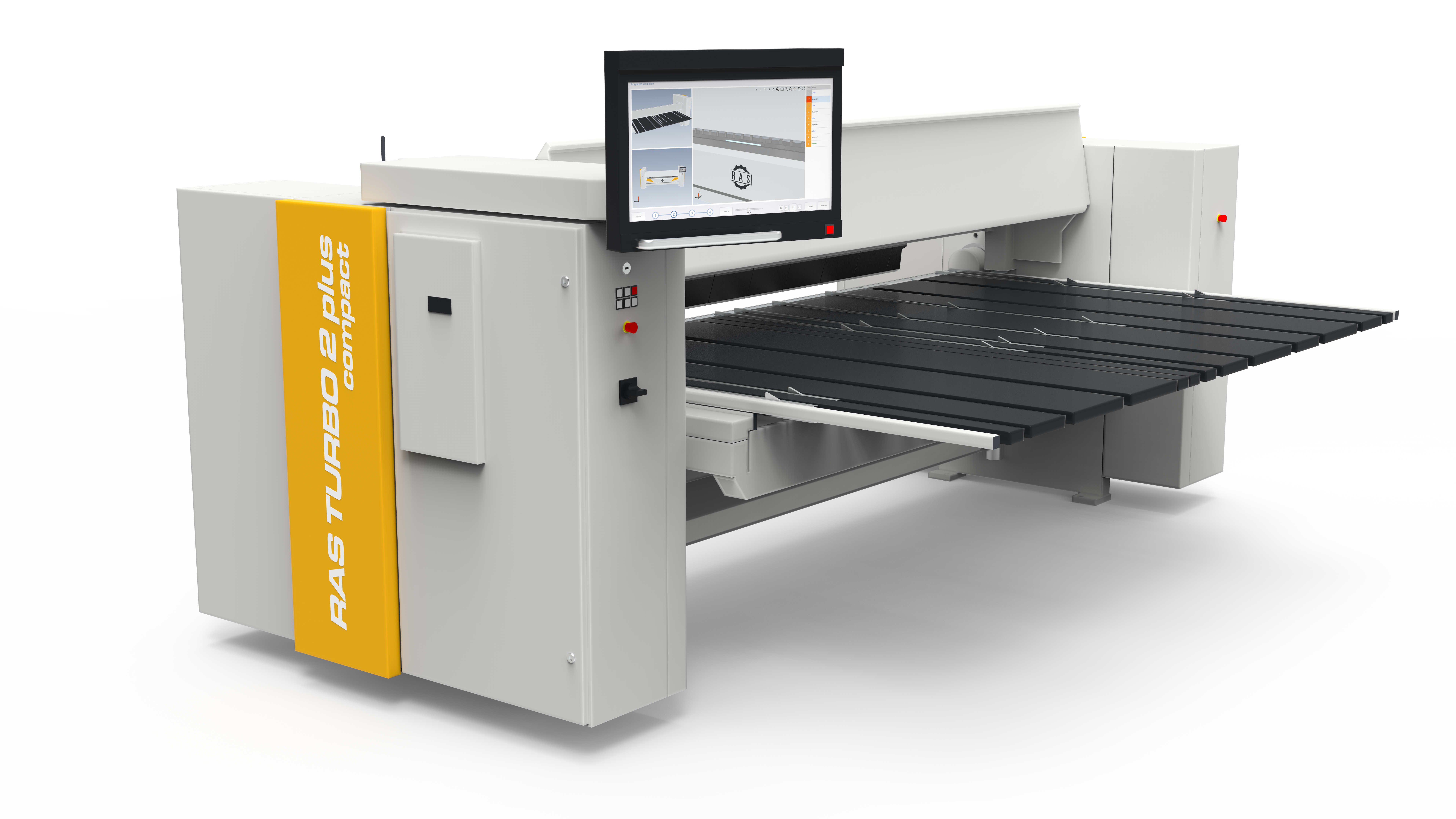

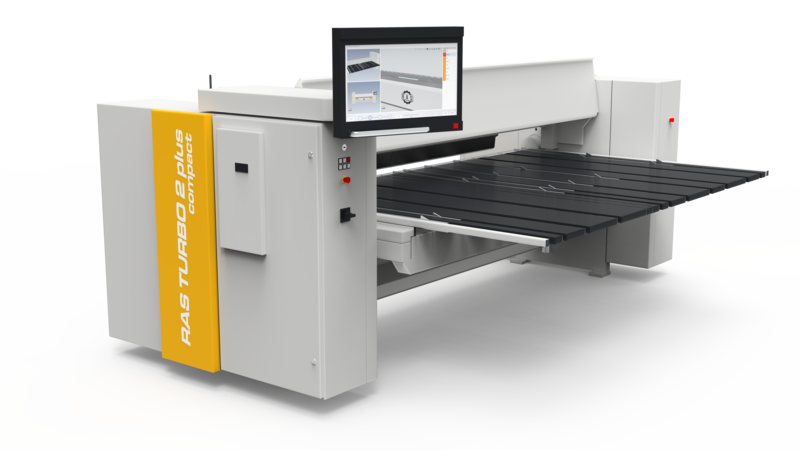

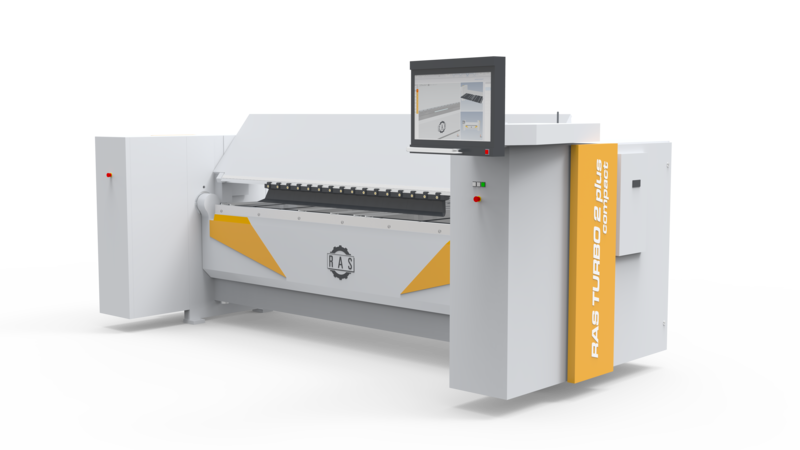

High performance in a compact space: the new TURBO2plus Compact RAS introduces the compact successor to its proven bending machine
The TURBO2plus Compact is based on the construction and technology of the standard TURBO2plus model, but features a newly designed housing. Thanks to its more compact build, and in particular the reduced overall height, the machine integrates easily even into tight spaces. Improved access to the machine also simplifies the handling of larger parts and enhances material flow. It is available in bending lengths of 2540 mm, 3200 mm, or 4060 mm, and can process steel sheets up to 2.5 mm thick with a tool height of 145 mm.
Flexible control options
The control system of the compact version offers maximum flexibility. Depending on user preference, the machine can be operated with either the intelligent, graphically guided Bendex software or the streamlined OpenEditor interface. Both options ensure fast, precise, and efficient programming.
Modular and versatile
Like the TURBO2plus, the compact model is ideal for use in sheet metal shops, roofing and façade applications, sign manufacturing, and general metalworking environments. It can be flexibly equipped with segmented upper beam tools for creating three- or four-sided bent parts, such as boxes. Segmented folding beam tools or crowning rails can also be integrated to achieve special geometries and high precision, even on long parts.
The TURBO2plus Compact delivers the same technical capabilities and process reliability as the previous standard model, while requiring significantly less space.
-
-
