Technical data
|

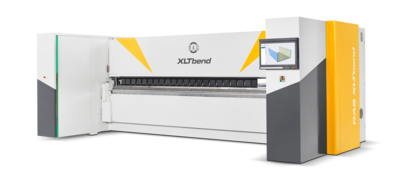

Technical Data XLTbend (mm) |
RAS 71.40 |
RAS 71.30 |
|---|---|---|
|
Working length |
4060 mm |
3200 mm |
|
Material thickness max (400 N/mm²) |
2.5 mm |
3.0 mm |
|
Upper beam open height max |
650 mm |
650 mm |
|
Box height max (four-sided) |
300 mm |
300 mm |
|
Gauging system |
Hybrid gauging system |
Hybrid gauging system |
|
Programming |
automatic |
automatic |
|
Machine dimensions (Rectangular gauging system) |
6000 x 3100 mm |
5100 x 3100 mm |
|
Machine dimensions (T gauging system) |
4000 x 5600 mm |
5100 x 4690 mm |
|
Technical Data XLTbend (inch) |
RAS 71.40 |
RAS 71.30 |
|---|---|---|
|
Working length |
160" |
126" |
|
Material thickness max (58,000 PSI) |
13 ga |
11 ga |
|
Upper beam open height max |
25.6" |
25.6" |
|
Box height max (four-sided) |
11.8" |
11.8" |
|
Gauging system |
Hybrid gauging system |
Hybrid gauging system |
|
Programming |
automatic |
automatic |
|
Machine dimensions (Rectangular gauging system) |
236" x 122" |
200" x 122" |
|
Machine dimensions (T gauging system) |
236" x 220" |
200" x 185" |
